Vertical & Horizontal Milling Machine

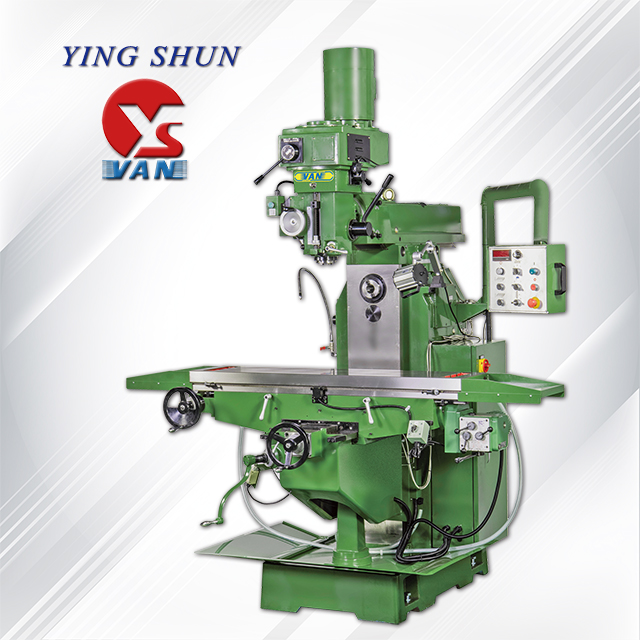

【YSM-28 series】 Vertical-Horizontal Milling Machine

YSM-28 series

X/Y/Z travel : 1000/400/440 mm
Spindle taper : NT40(Ø110)
Spindle motor : 5HP(Opt.7.5)



  • The main casting part is made of meehanite casting.

  • The spindle run on high precision P4 class bearing.

  • The spindle is one piece machined from SCM440 alloysteel, thermal refining, high-frequency and precision polishing.

  •  Milling head type:

    -Steps (SHB) Inverter (CHB)



10 Steps
60HZ  75-125-195-280-420-650-1050-1610-2360-3500(RPM)
50HZ  60-100-160-230-350-530-860-1320-1940-2870 (RPM)


    -Inverter type used YASKAWA VFD.



  • Used type B belt drive.



  • Hardened and ground X,Y,Z axes slideway.

  • Turcite-B coated on X Y ways.

  • Square way design on Y and column slideway.

  • X/Y axis double nut ball screw.

  • Horizontal milling gear mechianism, maximum speed 1288/50HZ.



9 Steps
60HZ 92-204-241-251-536-590-660-1311-1614(RPM)
50HZ 73-163-193-201-428-471-527-1056-1288(RPM)



  •  Horizontal bracket.


Model Unit YSM-28SHB YSM-28CHB
Travel
Longitudinal travel (M./A.) mm 1000
Cross travel (M./A.) mm 400
Vertical travel (M./A.) mm 440
Slideway X/Y/Z type △ / □ / □
Quill travel mm 140
Overarm travel mm 700
Overarm swivel degree 360
Quill swivel (R&L) / (F&B) degree ±45/Fixed
Dist. from spindle nose to table mm 100-540
Spindle centerline to column mm 180-880
Table
Dimension mm 1370x300
T-slots (Width x No. x Pitch) mm 16x3x70
Max. table load kg 300
Spindle
Milling head type 10/20 Steps Inverter
Speed 60HZ rpm 75-3500 55-3600
50HZ rpm 60-2870
Vertical feeds mm/rev 0.04/0.08/0.15
Main/Horizontal taper type NT40
Quill Diameter mm 110
Horizontal spindle speed 60HZ rpm 92-1614 (9 steps) (Opt. Inverter 60-1400)
73-1288 (9 steps)
50HZ
Motor
Main/Horizontal spindle HP 5
X-axis traverse HP 1/2
Z-axis elevation HP 1/2
Feedrate
X-axis speed mm/min 30-1300(9 setps)
Z-axis speed mm/min 345

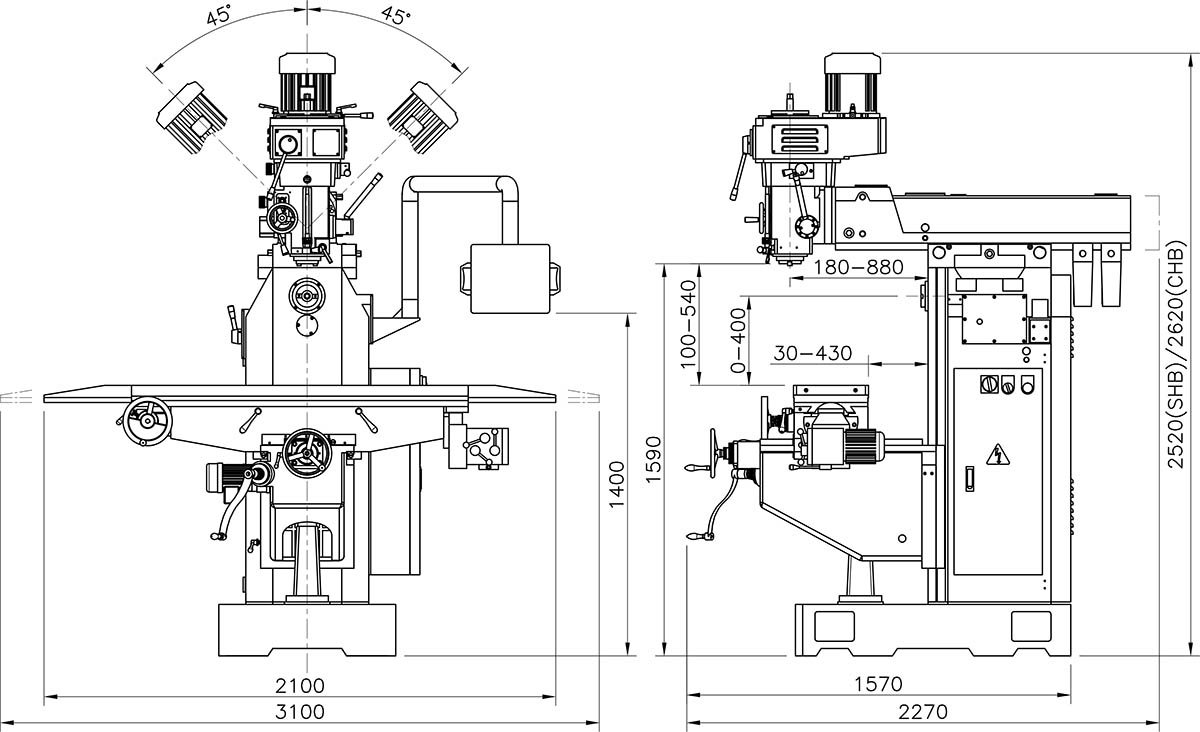

Machine
Space(LxWxH) mm 2270x3100x2520
Packing dimension(LxWxH) mm 1800x2200x2100
Net Weight kg 2250
Gross Weight kg 2450

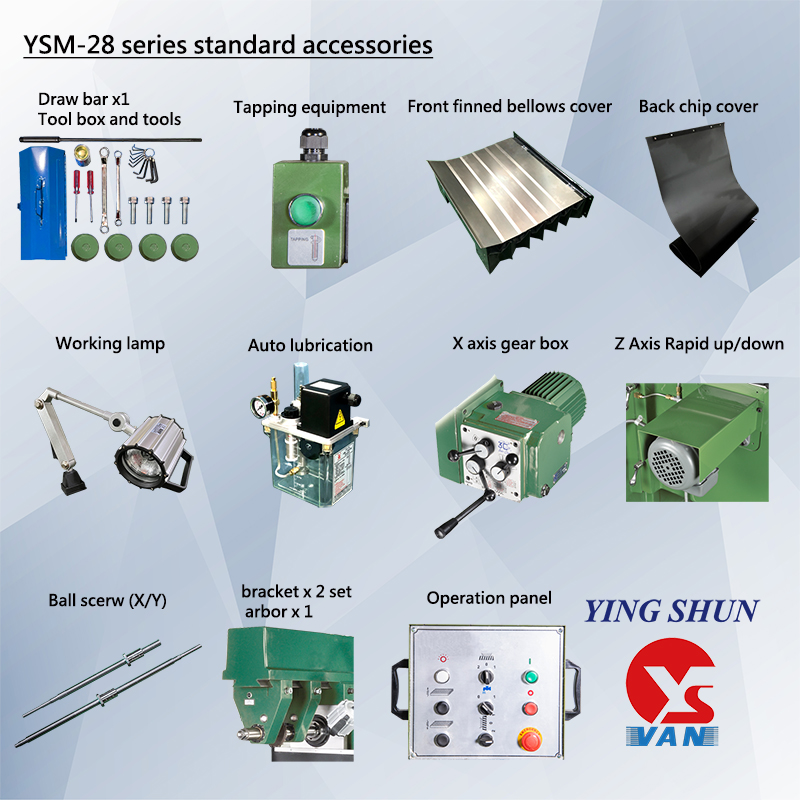

Standard accessories



  • Draw bar
  • Tool box and tools
  • Tapping equipment of spindle
  • Front finned bellows cover on Y axis
  • Back chip cover on Y axis
  • Working lamp
  • Auto lubrication system
  • X axis gear box
  • Z Axis Rapid up/down
  • Deluxe type operation panel
  • Electric box
  • Ball screw (X/Y)
  • Horizontal bracket (2 pcs/set)
  • Horizontal arbor (25.4mm)

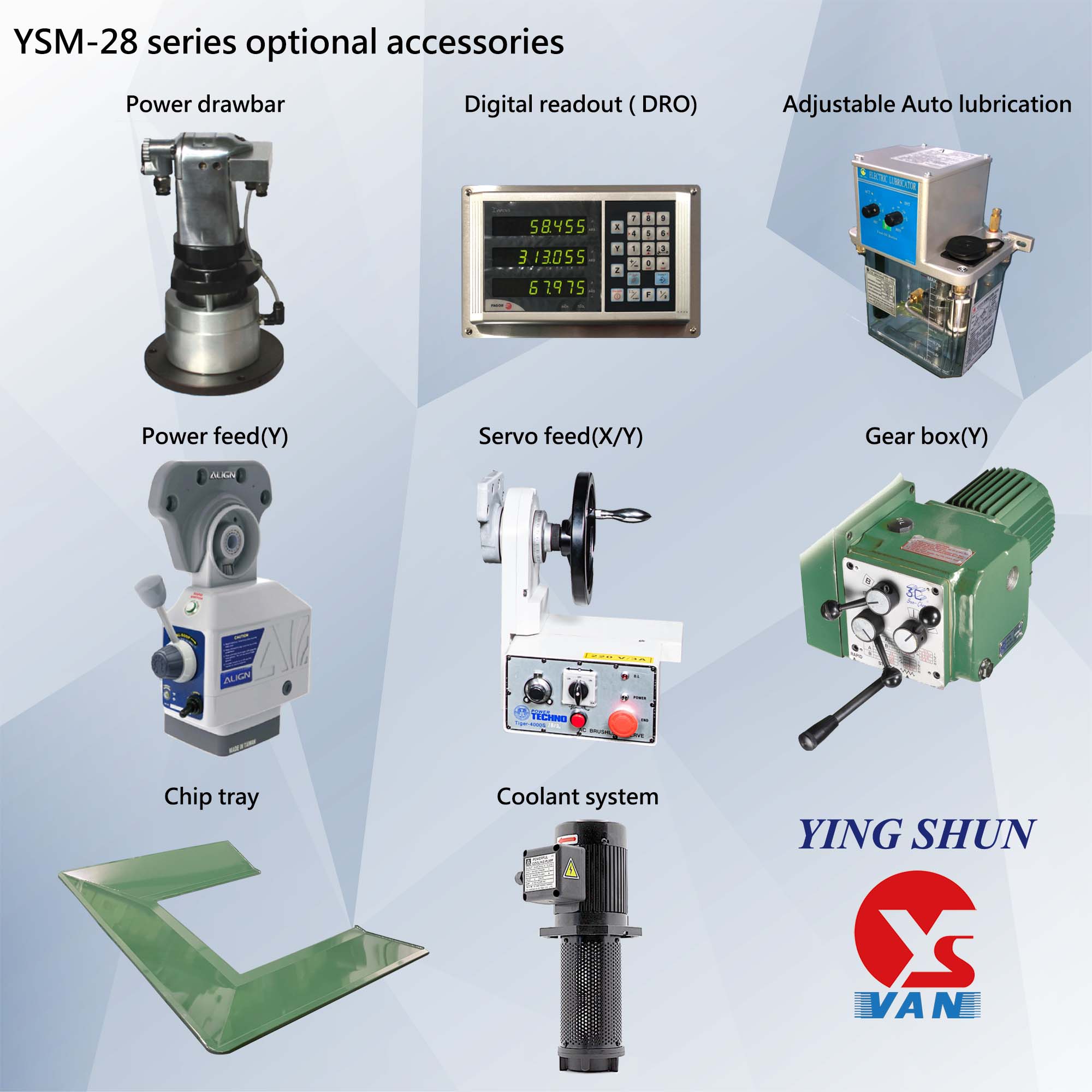

Optional accessories



  • Power drawbar
  • Power feed(Y)
  • Servo feed(X/Y)
  • Gear box(Y)
  • Digital readout ( DRO)
  • Adjustable Automatic lubrication system
  • Coolant system(Pump 1/8HP)
  • Chip tray

※ All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
