Bed Type Milling Machine

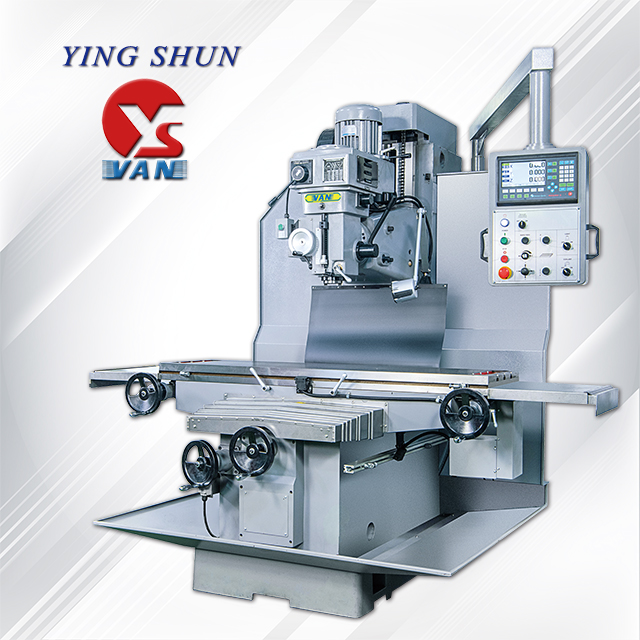

【YSM-VB600A series】 Bed Type Milling Machine

YSM-VB600A series

X/Y/Z travel : 1000(Opt. 1200,1400)/550/600 mm
Spindle taper : NT40
Spindle motor : 5HP (Opt.7.5HP)
X/Y/Z servo motor
X/Y/Z axis ball screw



  • The main casting part is made of meehanite casting(FC30)

  • The spindle run on high precision P4 class bearing.

  • The spindle is one piece machined from SCM440 alloysteel, thermal refining, high-frequency and precision polishing.

  • Milling head type:

    -1.8#: Steps (AE) Inverter (EC)



10 steps
60HZ 70-125-190-285-420-600-1025-1530-2200-3350(RPM)
50HZ 58-110-165-240-360-500-870-1290-1900-2780 (RPM)



20 steps
50HZ   2P  116-220-330-480-720-1000-1740-2580-3800-5560(RPM)
4P 58-110-165-240-360-500-870-1290-1900-2780 (RPM)

    -2.0#: Steps (AE) Inverter (EC)



10 Steps
60HZ  75-125-195-280-420-650-1050-1610-2360-3500(RPM)
50HZ  60-100-160-230-350-530-860-1320-1940-2870 (RPM)


    -Inverter type used YASKAWA VFD.



  • Used type B belt drive.

  • Three-axis with servo motor feed (Z-axis with brake)

  • X/Y/Z axis double nut ball screw.

Model Unit YSM-VB600AE YSM-VB600AT YSM-VB600EC YSM-VB600TC
Travel
X axis travel mm 1000(Opt.1200,1400)
Y axis travel mm 550
Z axis travel mm 600
Slideway X/Y/Z type △ / □ / □
Quill travel mm 140
Quill swivel (R&L) mm ±45
Dist. from spindle nose to table mm 100-700
Spindle centerline to column mm 570
Table
Dimension mm 1400(Opt.1600,1800)x450
T-slots (Width x No. x Pitch) mm 18x3x100
Max. table load kg 1000
Spindle
Milling head type 10/20 Steps 10 Steps Inverter
Speed 60Hz rpm 70-3350(10) 75-3500 55-3600
50Hz rpm 58-2780(10) 60-2870
rpm 58-5560(20)
Feeds mm/rev 0.04/0.08/0.15
Taper type NT40
Quill diameter mm 105 110 105 110
Motor
Main spindle HP 5 (Opt.7.5)
X/Y/Z axis motor KW 0.75/0.75/0.75
Feedrate
X/Y/Z Feed speed mm/min 0-3000
Machine

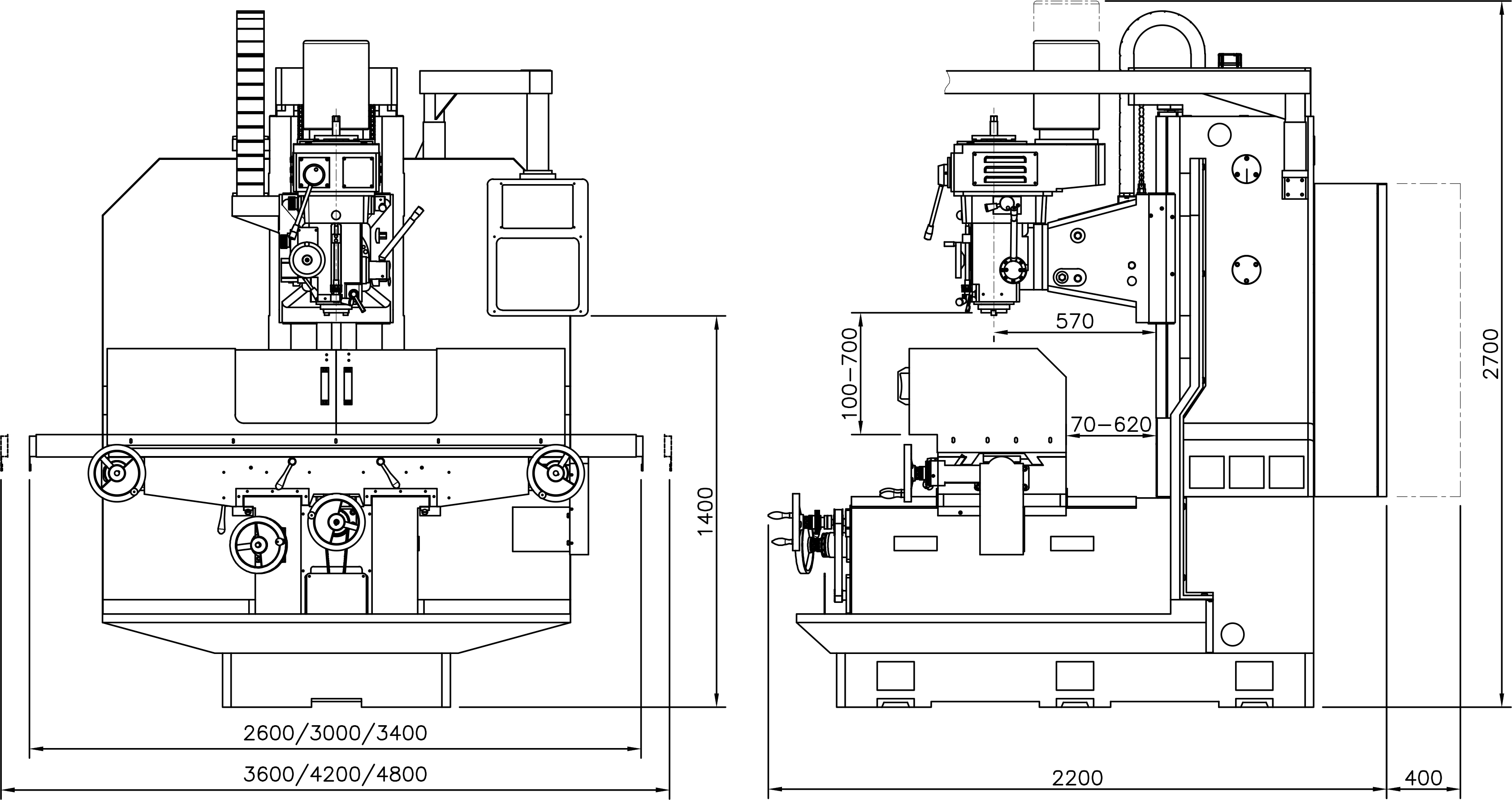

Space(LxWxH) mm 3600(Opt.4200,4800) x 2600 x 2700
Packing dimension(LxWxH) mm 2600(Opt.3000,3400) x 2300 x 2500
Net Weight kg 3400
Gross Weight kg 3600
Standard accessories



  • Draw bar
  • Tool box and tools
  • Tapping equipment of spindle
  • Front steel cover on Y axis
  • Back hoist drum chip cover on Y axis
  • Working lamp
  • Coolant system(Pump 1/4HP)
  • Deluxe type operation panel
  • Electric box
  • X/Y/Z Servo motor
  • X/Y/Z axis Ball screw
  • Tapping equipment of spindle(AT/TC)
  • Working table safety shield
  • Rear splash guard
  • Chip tray
  • Digital readout ( DRO)



Optional accessories



  • Power drawbar
  • Above finned bellows cover on Z axis

※ All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
