CNC Bed Type Milling Machine

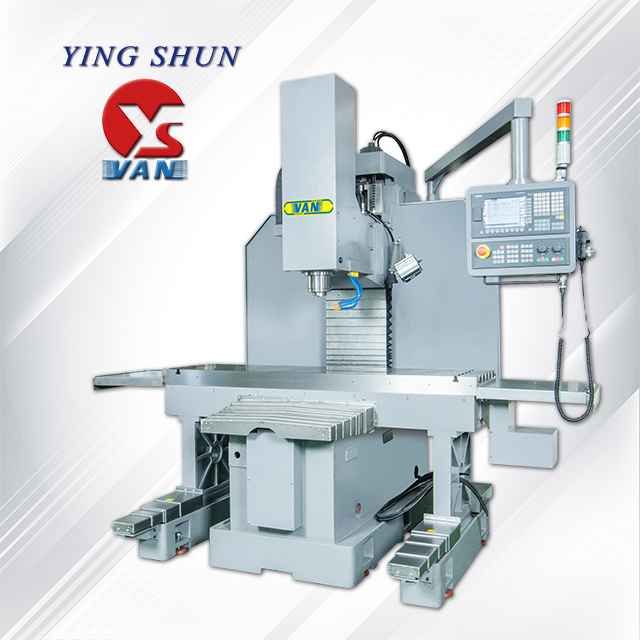

【YSM-VB1600】 CNC Bed Type Milling Machine

YSM-VB1600

X/Y/Z travel : 1600(Opt.1800.2000)/550/500mm
Spindle taper : BT40 (Opt.BT50)
Spindle motor : 7.5/11kw (Opt.11/15kw)
Spindle driven : Belt (Opt.Direct)
  •  Controller Type: FANUC/SIEMENS/SYNTEC/FAGOR.

  • The main casting part is made of meehanite (FC30 ).

  • The three-axis uses a pre-pressed double-nut ball screw (C3).



Model Unit YSM-VB1600
Travel
X axis travel mm 1600(Opt.1800,2000)
Y axis travel mm 550
Z axis travel mm 500
Slideway X/Y/Z type △ / □ / □
Quill travel mm 140
Dist. from spindle nose to table mm 100-600
Spindle centerline to column mm 570
Table
Dimension mm 1900x450(Opt.2200x450)
T-slots (Width x No. x Pitch) mm 18x3x100
Max. table load kg 1000
Spindle
Transmission type Belt (Opt.Direct)
Speed rpm 8000 (Opt.10000)
Taper type BT40 (Opt.BT50)
Motor
Main spindle KW 7.5/11 (Opt.11/15)
X/Y/Z axis motor KW 1.45/1.45/1.45 (SIEMENS 828D)
1.7/1.7/1.7 (SYNTEC 22MA)
1.4/1.4/1.4 (FAGOR 8055i FL)
1.4/1.4/1.4 (FANUC Oi-MF PLUS)
Feedrate
X/Y/Z Feed speed mm/min 0-3000
X/Y/Z Rapid feed speed mm/min 5000
Tool magazine(Opt.)
Tool storage capacity pcs 20 (Opt.24,30)
Max. tool diameter mm Ø80/BT40 (Opt.Ø120/BT50)
Max. tool lengh mm 300
Max. tool weight kg 8/BT40 (Opt.16/BT50)
Machine

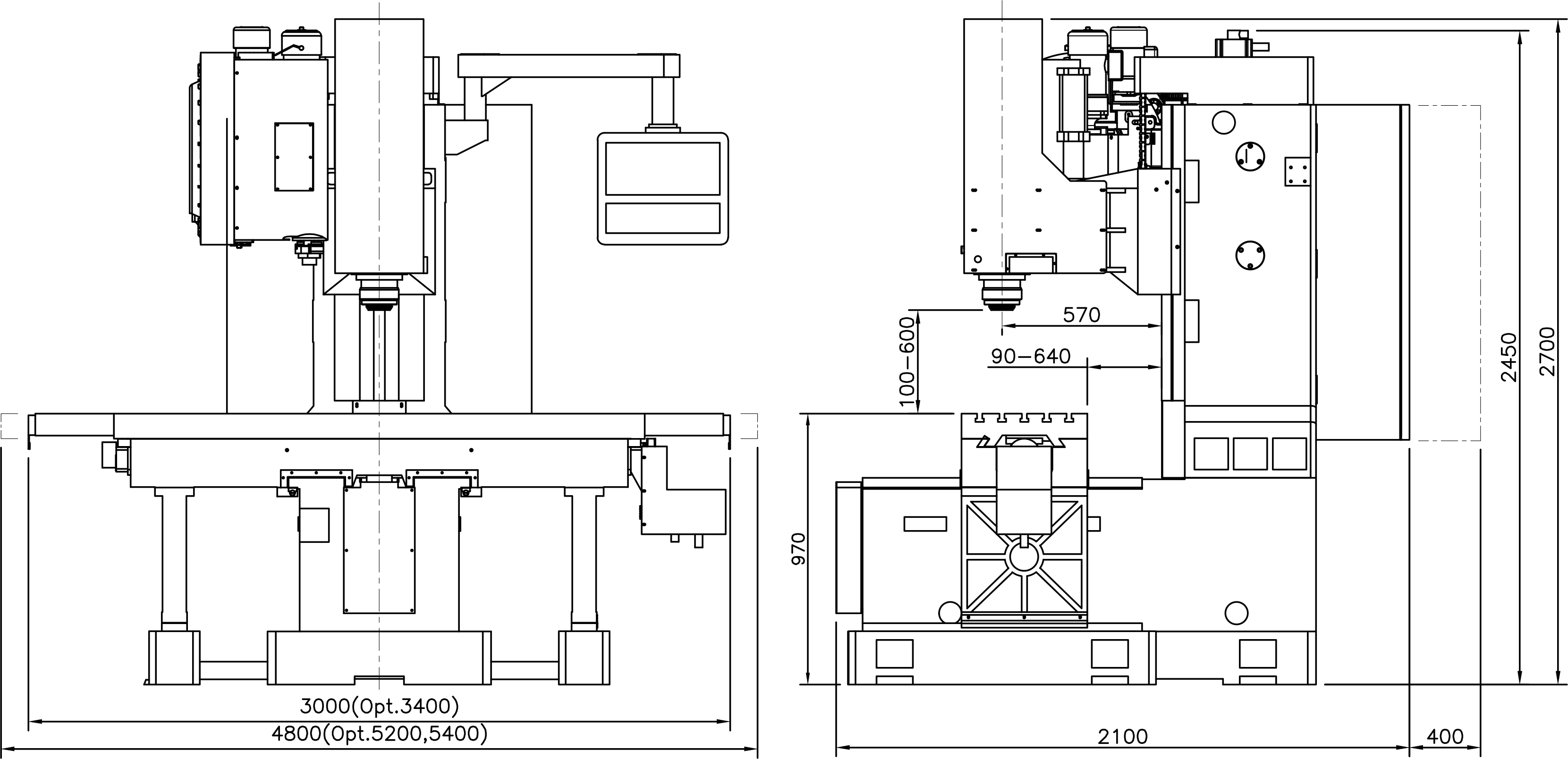

Space(L x W x H) mm 4800 x 2700 x 2700
Packing dimension(L x W x H) mm 3100 x 2200 x 2600
Net Weight kg 4200
Gross Weight kg 4400
Standard accessories



  • Tool box and tools
  • steel cover on X axis
  • Front steel cover on Y axis
  • Front finned bellows cover on Y axis
  • Below finned bellows cover on Z axis
  • Working lamp & 3-color signal lamp
  • Auto lubrication system
  • Heat exchanger for electrical cabinet
  • Manual Pulse Generator (MPG)
  • Deluxe type operation panel
  • XYZ-axis double nut ball screw
  • XYZ-axis absolute pulse coder feedback
  • Spindle air blow system
  • Spindle oil cooler
  • Coolant gun and air socket
  • Working table splash guard
  • Rear splash guard
  • Chip tray
  • Coolant system(Pump 1/4HP)
Optional accessories



  • Full splash guard
  • tools magazine with arm type ATC
  • Auto tool length measurement
  • Auto workpiece coordinate measurement

※ All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
