Horizontal Milling Machine

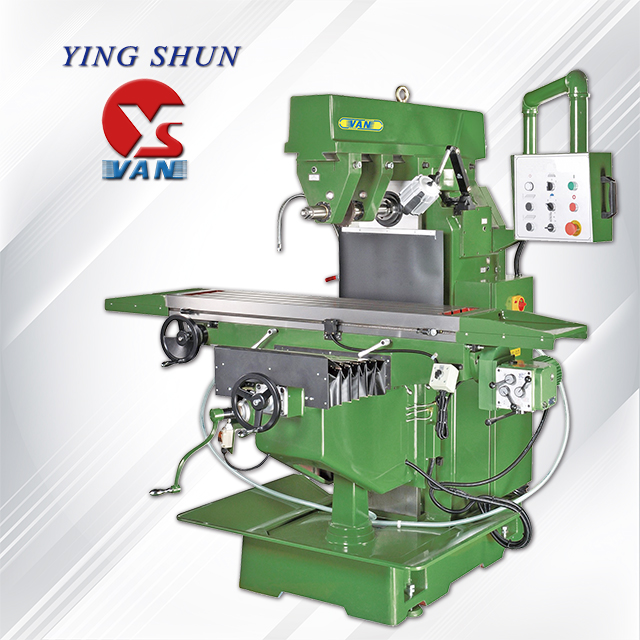

【YSM-26H series】 Horizontal Milling Machine

YSM-26H series

X/Y/Z travel : 1000/400/420mm
Spindle taper : NT40
Spindle motor : 5HP(Opt.7.5)
Hardened ground-X/Y/Z
Square way-Y/Z



  • The main casting part is made of meehanite casting.

  • The spindle is one piece machined from SCM440 alloysteel, thermal refining, high-frequency and precision polishing.

  • Hardened and ground X,Y,Z axes slideway.

  • Turcite-B coated on X Y ways.

  • Square way design on Y and column slideway.

  • X/Y axis double nut ball screw.

  • Horizontal milling gear mechianism, maximum speed 1288/50HZ.



9 Steps
60HZ  92-204-241-251-536-590-660-1311-1614(RPM)
50HZ  73-163-193-201-428-471-527-1056-1288(RPM)




  •  Horizontal bracket.


Model Unit YSM-26HS YSM-26HC
Travel
Longitudinal travel (M./A.) mm 1000
Cross travel (M./A.) mm 400
Vertical travel (M./A.) mm 420
Slideway X/Y/Z type △ / □ / □
Overarm travel mm 700
Overarm swivel degree 360
Dist. from the bottom of the arm to the center of the spindle mm 215
Dist. from spindle nose to table mm 0-420
Table
Dimension mm 1270x300 (Opt.1370x300)
T-slots (Width x No. x Pitch) mm 16x3x70
Max. table load kg 300
Spindle
Milling head type 9 Steps Inverter
Speed 60Hz rpm 92-1614 60-1400
50Hz rpm 73-1288
Main/Horizontal taper type NT40
Motor
Main/Horizontal spindle HP 5
X-axis traverse HP 1/2
Z-axis elevation HP 1/2
Feedrate
X-axis speed mm/min 30-1300(9 setps)
Z-axis speed mm/min 345
Machine
Space(L x W x H) mm 2270x3100x2520
Packing dimension(L x W x H) mm 1800x2200x2100
Net Weight kg 2000
Gross Weight kg 2200

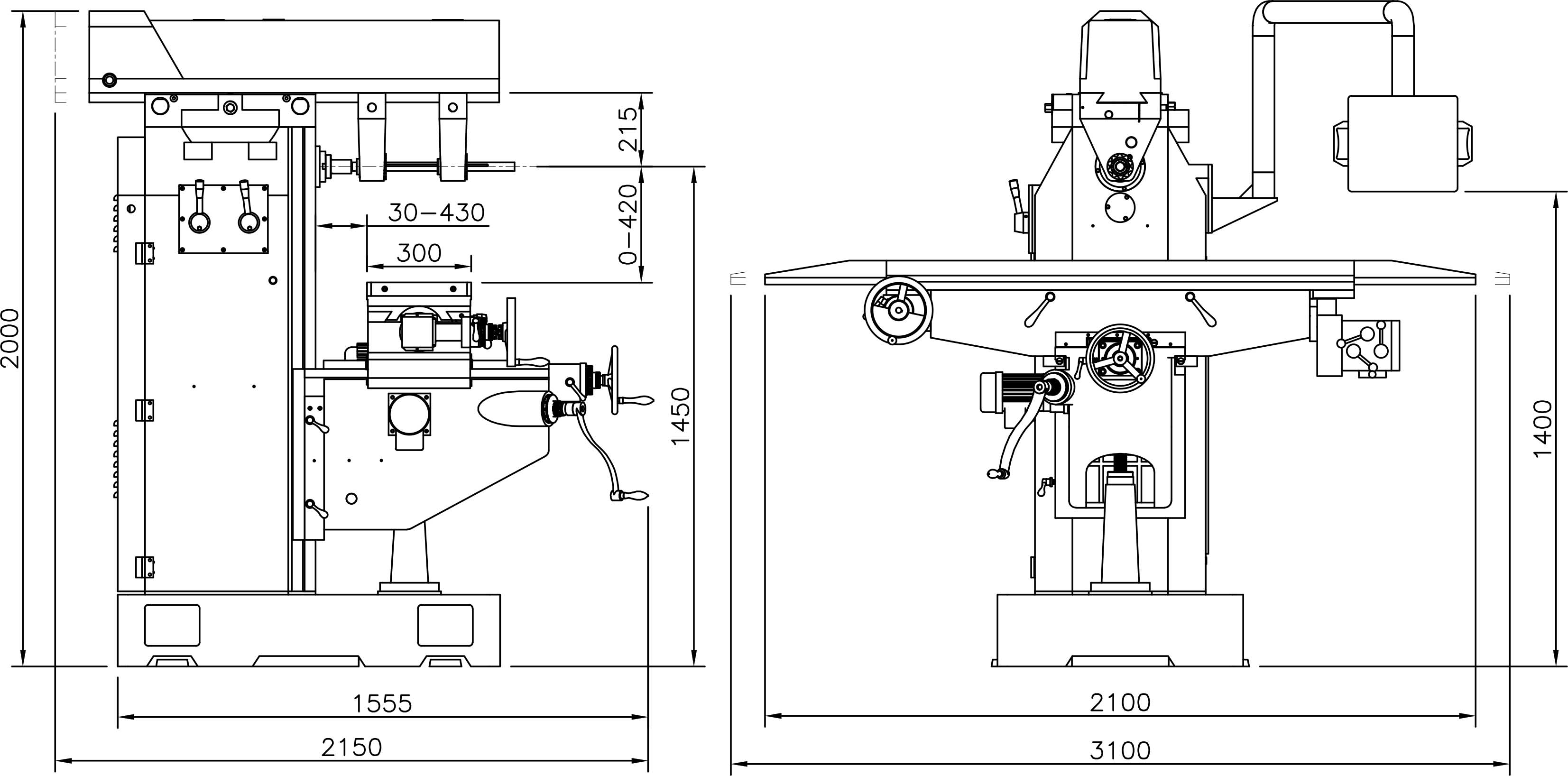

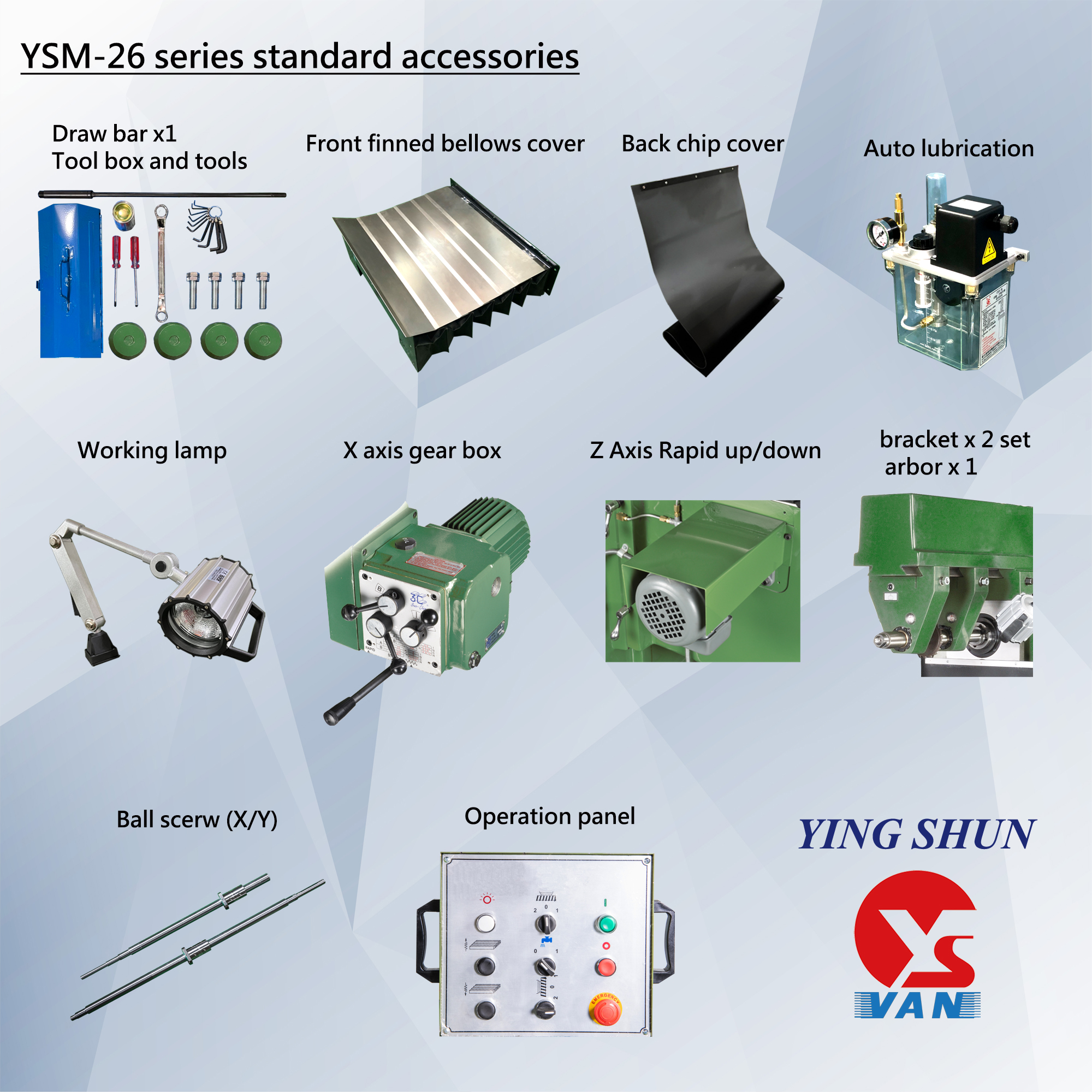

Standard accessories



  • Draw bar
  • Tool box and tools
  • Front finned bellows cover on Y axis
  • Back chip cover on Y axis
  • Working lamp
  • Auto lubrication system
  • X axis gear box
  • Z Axis Rapid up/down
  • Deluxe type operation panel
  • Electric box
  • Ball screw (X/Y)
  • Horizontal bracket (2 pcs/set)
  • Horizontal arbor (25.4mm)

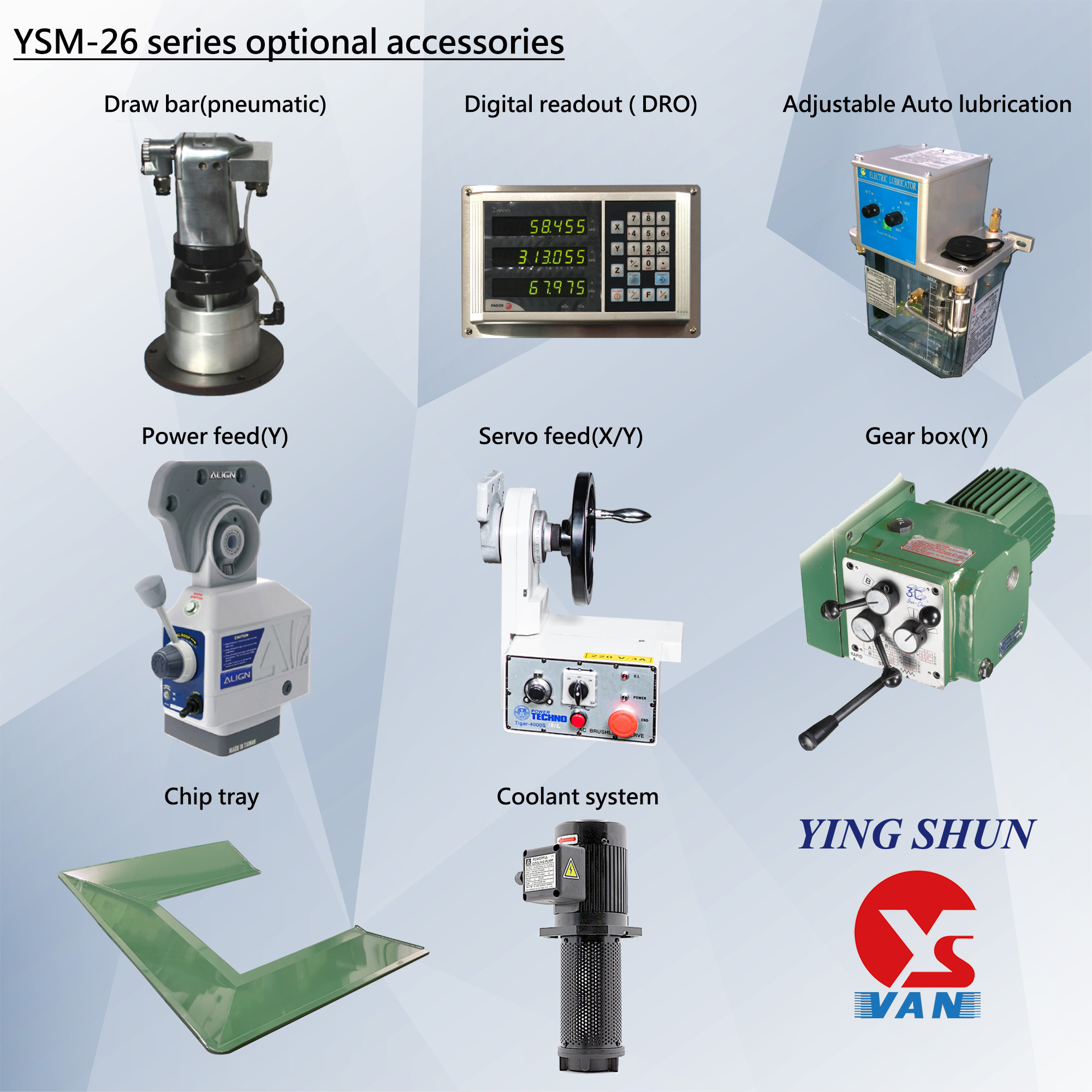

Optional accessories



  • Draw bar(pneumatic)
  • Power feed(Y)
  • Servo feed(X/Y)
  • Gear box(Y)
  • Digital readout ( DRO)
  • Coolant system(Pump 1/8HP)
  • Chip tray

※ All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
