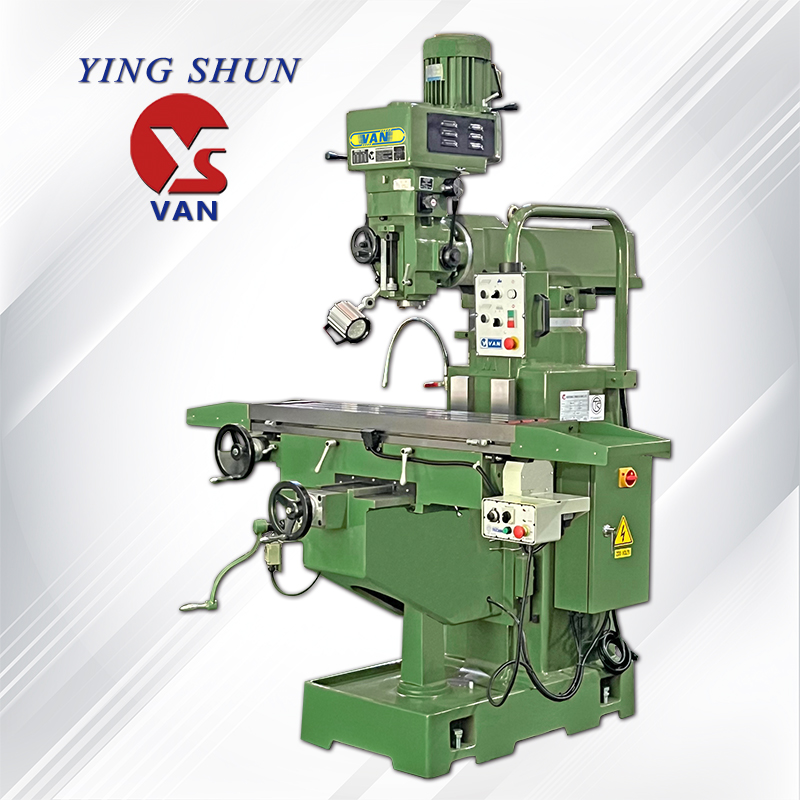

Vertical Turret Milling Machine

【YSM-860 series】 Vertical Turret Milling Machine

YSM-860 series

X/Y/Z travel : 1000/426/470mm
Spindle taper : NT40(Ø105)
Spindle motor : 5HP
Hardened ground-X/Y/Z
Square way-Y/Z
  •  The main casting part is made of meehanite casting.

  • The spindle is one piece machined from SCM440 alloysteel, thermal refining, high-frequency and precision polishing.

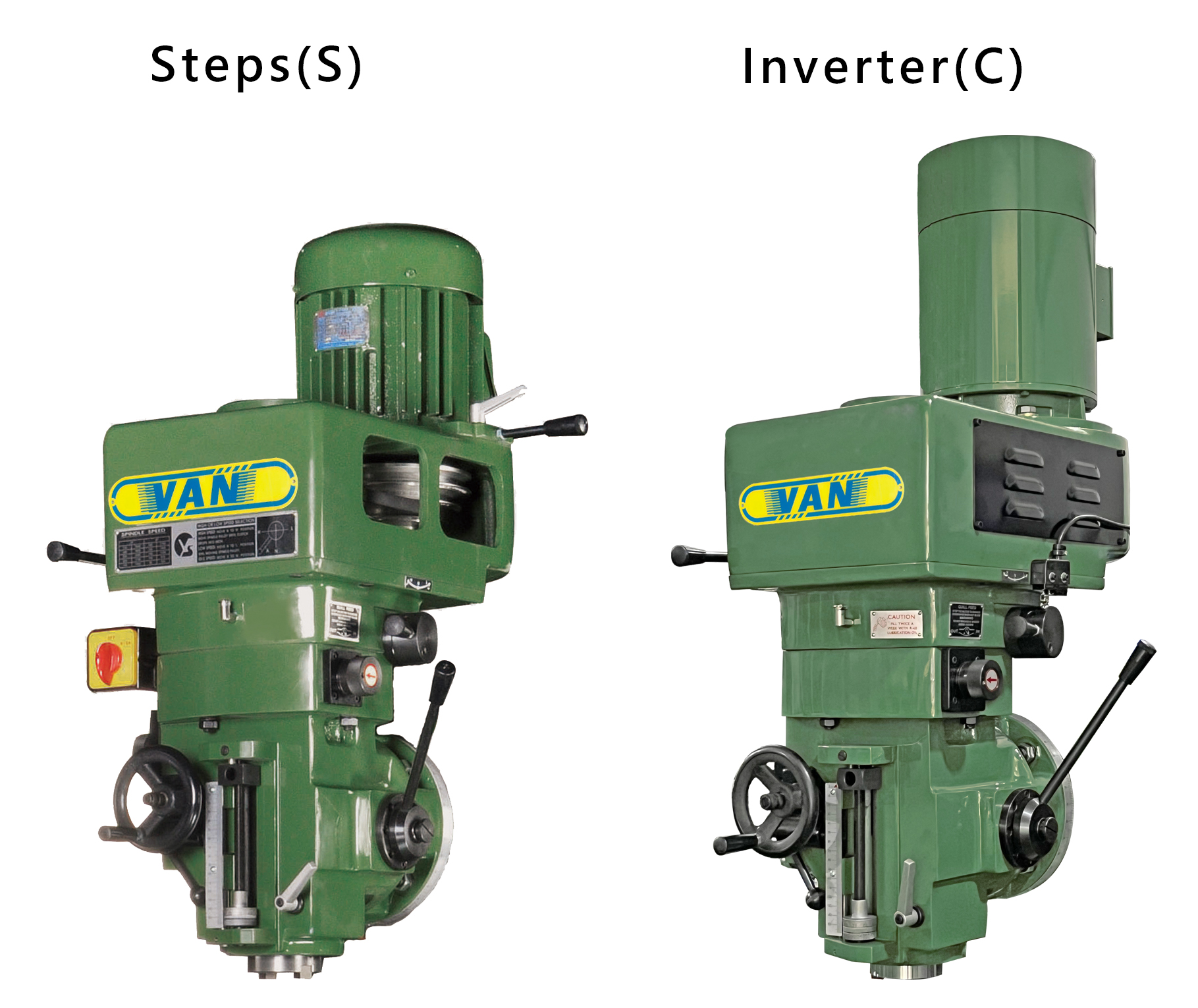

  •  Milling head type:

    -Steps (SS) Inverter (VC)



10 Steps
60HZ  70-125-190-285-420-600-1025-1530-2200-3350(RPM)
50HZ  58-110-165-240-360-500-870-1290-1900-2780 (RPM)



20 Steps
50HZ   2P 116-220-330-480-720-1000-1740-2580-3800-5560(RPM)
 4P  58-110-165-240-360-500-870-1290-1900-2780 (RPM)



    -Inverter type used YASKAWA VFD.


  • Maximum spindle speed up to 5560rpm/50HZ

  • Used type B belt drive.

  • Hardened and ground X,Y,Z axes slideway.

  • Turcite-B coated on X Y ways.

  • Square way design on Y and column slideway.

  • X/Y axis are using precision ball screw.

Model Unit YSM-860S YSM-860C
Travel
Longitudinal travel (M./A.) mm 1000
Cross travel (M./A.) mm 400
Vertical travel (M./A.) mm 470
Slideway X/Y/Z type △ / □ / □
Quill travel mm 140
Overarm travel mm 540
Overarm swivel degree 360
Quill swivel (R&L) / (F&B) degree ±45/Fixed(Opt.±45)
Dist. from spindle nose to table mm 20-490
Spindle centerline to column mm 85-625
Table
Dimension mm 1270x300 (Opt. 1370x300)
T-slots (Width x No. x Pitch) mm 16x3x70
Max. table load kg 300
Spindle
Milling head type 10/20 Steps Inverter
Speed 60Hz rpm 70-3350(10) 55-3600
50Hz rpm 58-2780(10)
rpm 58-5560(20)
Vertical feeds mm/rev 0.04/0.08/0.15
Taper type NT40
Quill Diameter mm 105
Motor
Main spindle HP 5
X-axis traverse HP 1/2
Z-axis elevation HP 1/2
Feedrate
X-axis speed mm/min 0-1500
Z-axis speed mm/min 345

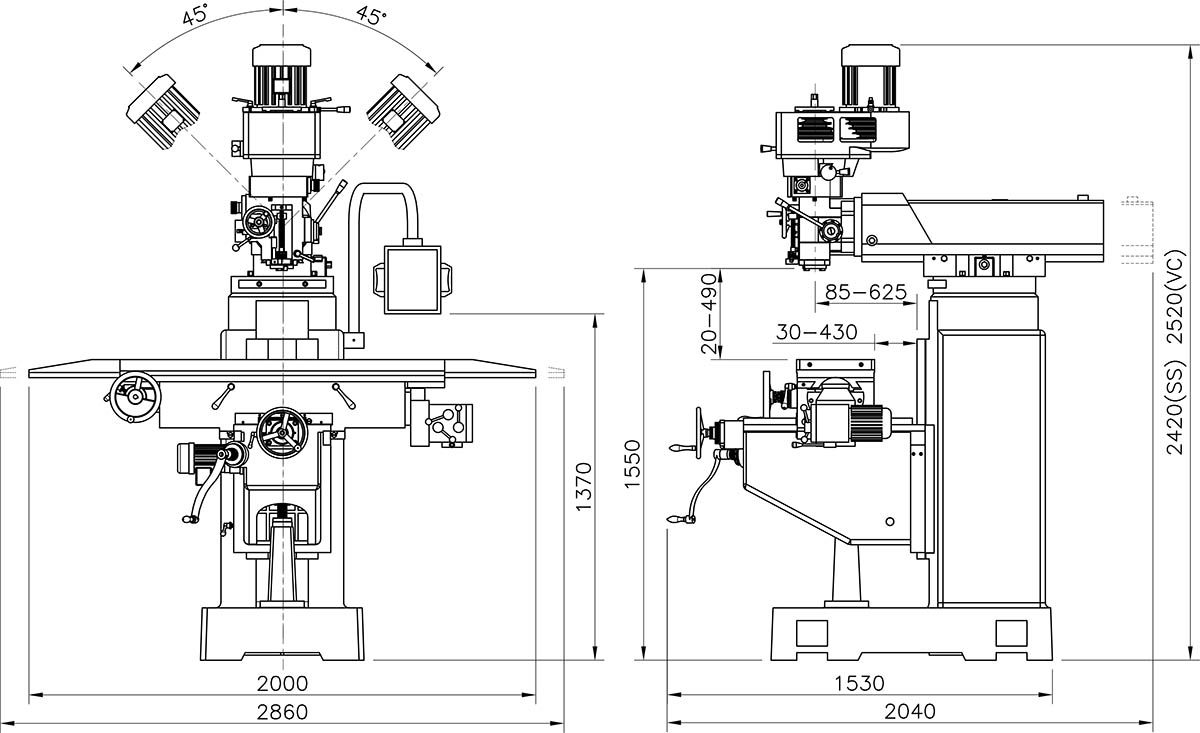

Machine
Space(L x W x H) mm 1920x2860x2420
Packing dimension(L x W x H) mm 1620x2100x1960
Net Weight kg 1700
Gross Weight kg 1850

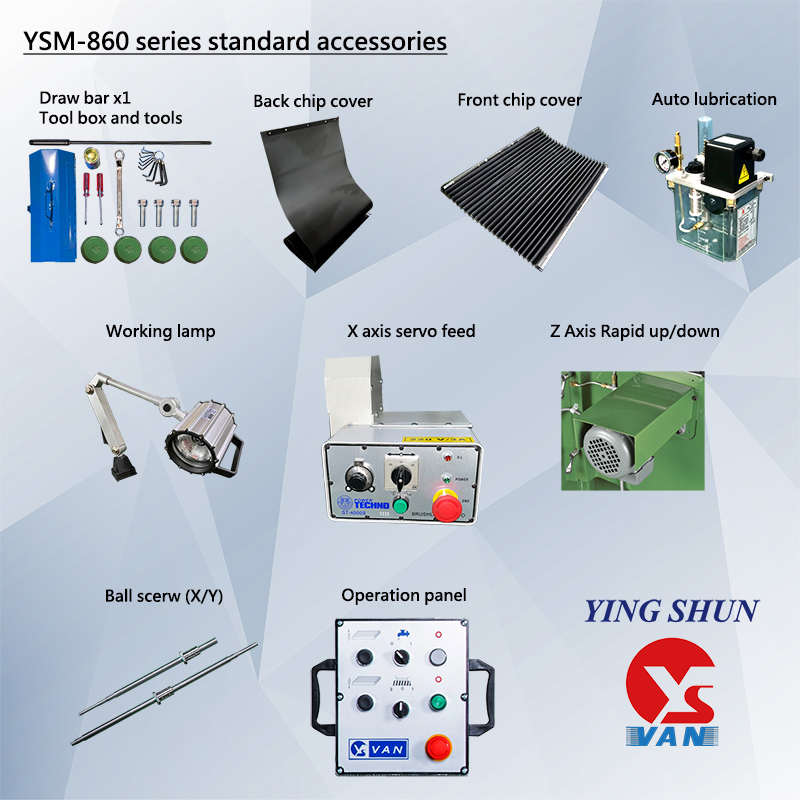

Standard accessories



  • Draw bar
  • Tool box and tools
  • Chip cover on Y axis
  • Auto lubrication system
  • Working lamp
  • X axis servo feed
  • Z Axis Rapid up/down
  • Deluxe type operation panel
  • Servo feed(X)
  • Electric box
  • X/Y axis Ball screw

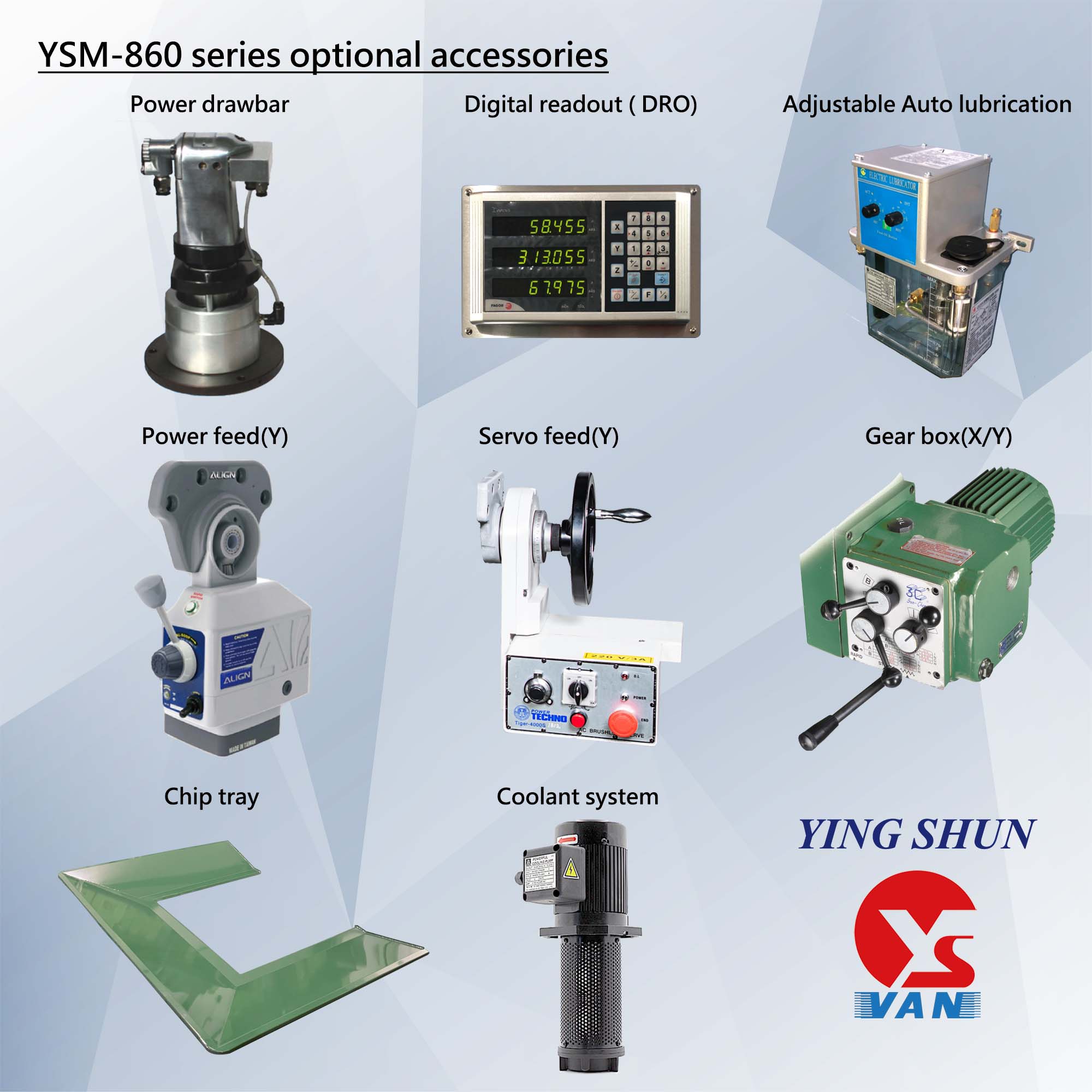

Optional accessories



  • Power drawbar
  • Power feed(Y)
  • Servo feed(Y)
  • Gear box(X/Y)
  • 100/150/200mm riser block
  • Digital readout ( DRO)
  • Coolant system(Pump 1/8HP)
  • Chip tray

※ All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
