CNC Horizontal Milling Machine

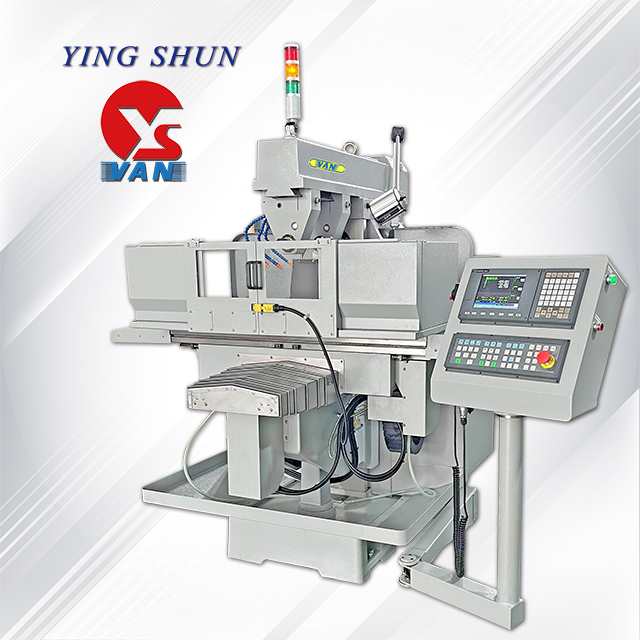

【YSM-26HNC】 CNC Horizontal Milling Machine

YSM-26HNC

X/Y/Z travel : 1000/400/400mm
Spindle taper : NT40
Spindle motor : 5HP (Opt.7.5HP)
Controller system



  • The main casting part is made of meehanite casting.

  • Controller Type: FANUC/SIEMENS/SYNTEC/FAGOR.

  • Inverter type used YASKAWA VFD

  • X/Y/Z axis with servo motor (Z-axis with brake).

  • X/Y/Z axis uses a double-nut ball screw.



Model Unit YSM-26HNC
Travel
Longitudinal travel mm 1000
Cross travel mm 400
Vertical travel mm 400
Slideway X/Y/Z type △ / □ / □
Overarm travel mm 700
Dist. from the bottom of the arm to the center of the spindle mm 215
Dist. from spindle center to table mm 0-400
Table
Dimension mm 1370x300
T-slots (Width x No. x Pitch) mm 16x3x70
Max. table load kg 300
Spindle
Milling head type Inverter
Speed rpm 60-1400
Main taper type NT40
Motor
Main spindle kw 3.7
X/Y/Z axis motor kw

0.94/0.94/1.45 (SIEMENS 828D)

1/1/1.7 (SYNTEC 22MA)

1/1/1.4 (FAGOR 8055i FL)

0.75/0.75/1.2 (FANUC 0i-MF PLUS)

Feedrate
X/Y/Z axis speed mm/min 0-3000

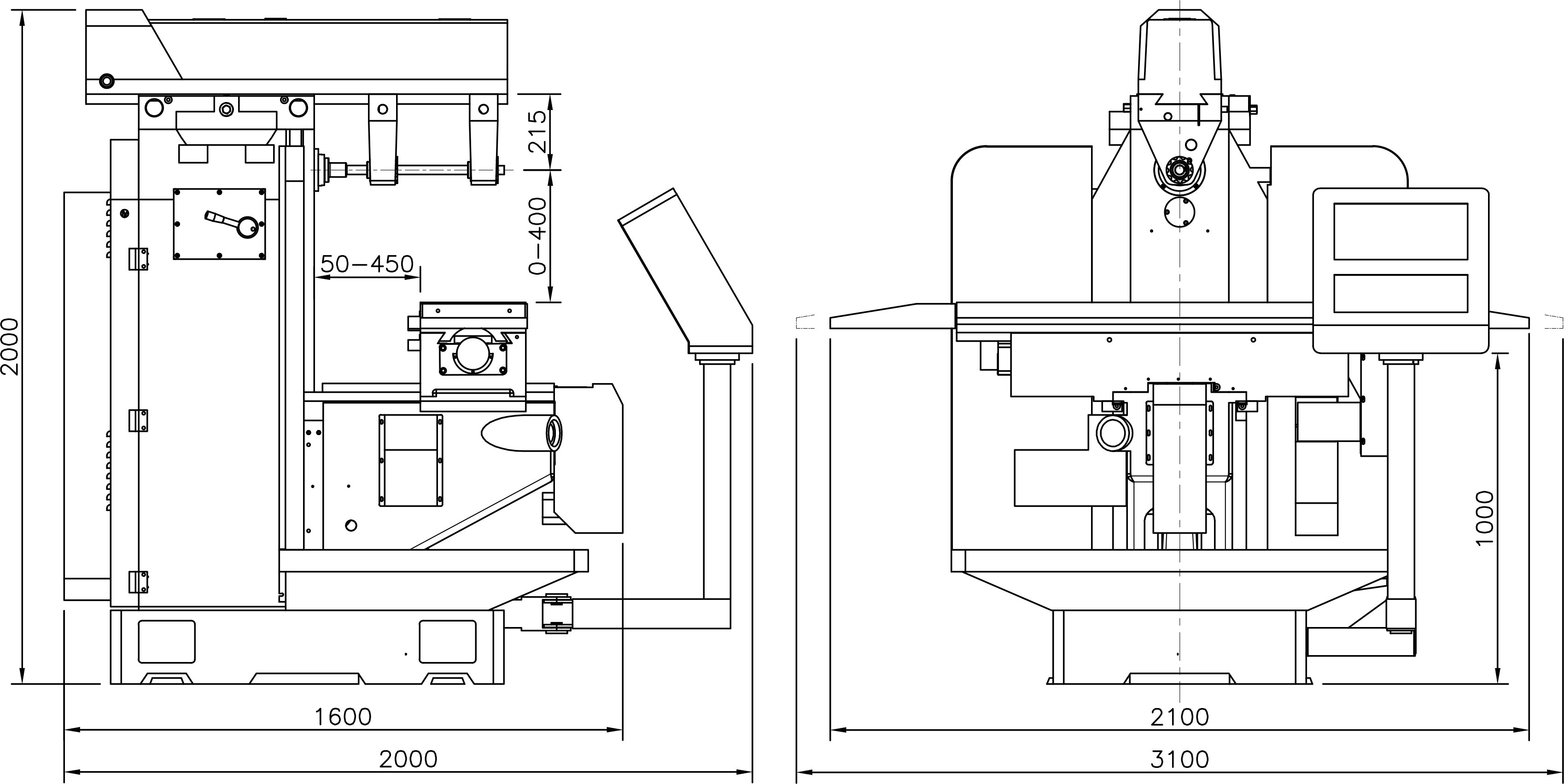

Machine
Space(L x W x H) mm 2000x2800x2000 (Opt.2000x3100x2000)
Packing dimension(L x W x H) mm 1800x2100x2000 (Opt.1800x2200x2000)
Net Weight kg 2200
Gross Weight kg 2350
Standard accessories



  • Draw bar
  • Tool box and tools
  • Front steel cover on Y axis
  • Back chip cover on Y axis
  • Working lamp & 3-color signal lamp
  • Auto lubrication system
  • Heat exchanger for electrical cabinet
  • Manual Pulse Generator (MPG)
  • Deluxe type operation panel
  • XYZ-axis double nut ball screw
  • XYZ-axis absolute pulse coder feedback
  • Rear splash guard
  • Chip tray
  • Coolant system(Pump 1/8HP)
  • Horizontal bracket (2pcs/set)
  • Horizontal arbor(25.4mm)
  • Working table splash guard



Optional accessories



  • Power drawbar

※ All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
